Ławica Airport

MAŁKOWSKI-MARTECH S.A. - Sharing Vision of Safety

Project characteristics:

Małkowski-Martech S.A. manufactured and assembled a big, Marc-P four-leaf sliding doore with fire bulkheads to secure handling system closures.

Sliding door:
- EI 60 rated four-leaf sliding door

Fire bulkhead assembly:
- EI 60 rated vertical and sliding doors as handling system closures.

Technical access area isolation door:
- EI 120 rated vertical sliding door

Project name	Modernisation of Poznań Ławica Airport
Project owner	Poznań Ławica
Project address	Aleja Solidarności 1-3, 87-100 Toruń
Contractor	Małkowski-Martech S.A.
Sector	Fire protection gates, fire protection bulkheads

Specific characteristic of the airport
Unobstructed flow of luggage
Necessary interfacing of the doors with other technical equipment at the airport
Installation of drive unit components with protection against unauthorised access
Necessary complete evacuation of people

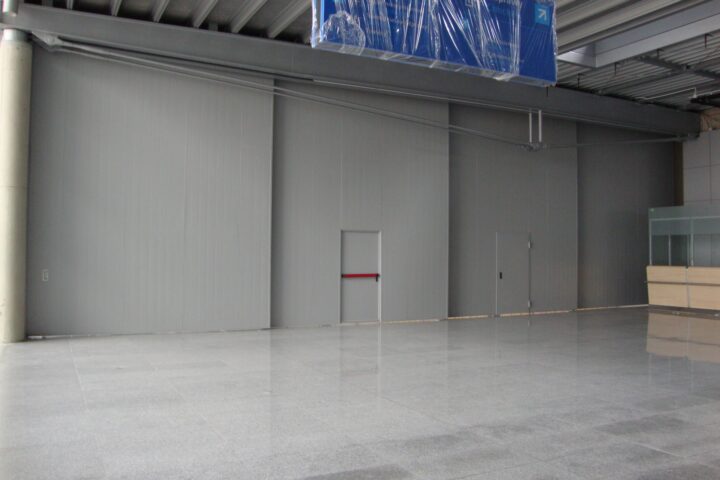

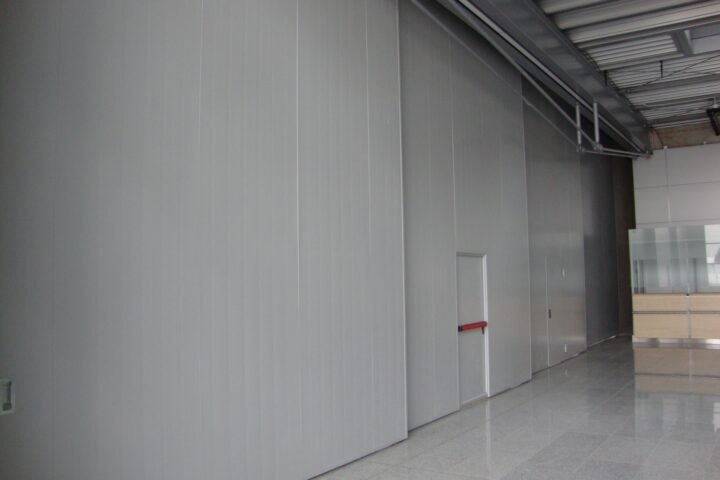

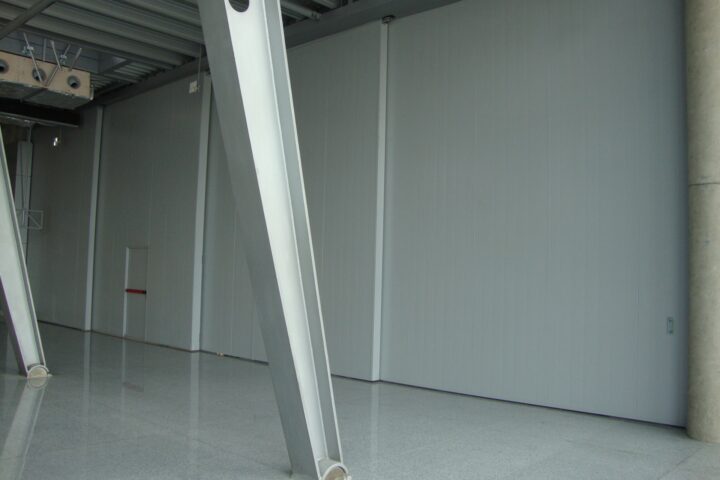

A Marc-P four-leaf sliding door with a rating of EI 60 was designed for the airport. The 11-metre door assembled in the arrival and departure concourse meets all the required fire protection specifications and is compatible with other airport fire protection equipment.
